ST/U10.1.11-811 SmartTouch 10” - white
- Original price €953,58
- €885,75
Type: BUSCH-JEAGER ST/U10.1.11-811 SmartTouch 10” - white
EAN: 6955891819535
Bus System: KNX
Degree of protection: IP20
Installation: Recessed
Screen size: 10 inches

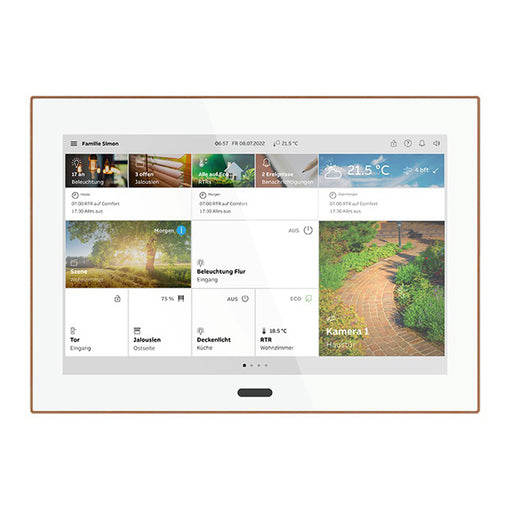

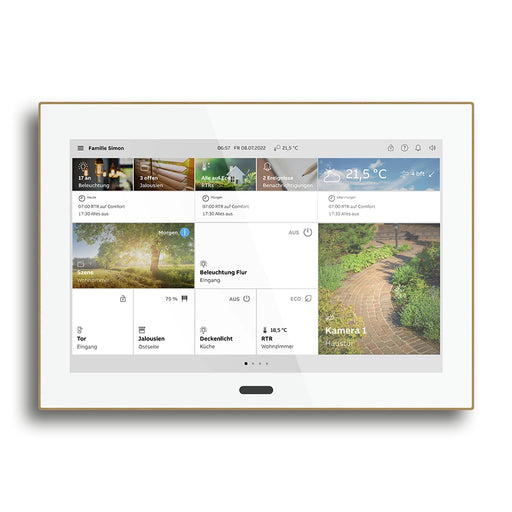

Freely programmable Touch panel featuring a 10-inch IPS screen with 1280*800 resolution that combines smart home automation and door communication in one device for residential applications, hotels, and commercial buildings. SmartTouch 10 offers home control and monitoring of the free@home, or KNX system and the fully integrated functions of ABB Welcome®.
Control, observe and manage your entire installation on one device: Switching - Dimming - Slider - Blind - RGBW control element - Step switch - Scene switch - Display element - Audio control element. With scene function, logic functions, presence simulation and time programs. SmartTouch® 10” can also be used as an end device for communication with the ABB-Welcome outdoor stations, and as part of the ABB-Welcome door communication system.
Functions
KNX:
• A total of 450 control elements are displayed on a maximum of 25 pages.
• 80 fault and alarm messages
• 30 logic functions
• 40 timers
• presence simulation for 20 participants
• 10 scene actuators
• 3 object RTC
• Equipped with a hearing loop for coupling the audio signal into hearing aids
• Page display with a maximum of 18 touch surfaces on one page
free@home:
• Twisted pair connection provides a single page with a maximum of 18 controls.
• Alternatively, for additional control, connection via wi-fi delivers the same amount of control and features as the free@home App.
Welcome:
• Integrated IP Gateway
• Possibility to integrate ONVIF IP cameras
External power supply: 20-32 VDC (SELV) or via the ABB-Welcome system controller.
Dimensions (L x W x D): (180.2 mm x 254.6 mm x 17.5 mm).
The slim frame with a flat design is almost flush with the wall (14mm).
Assembly:
- recessed 6136/07 UP + ST/A10.11-811
- wall mounting ST/A10.11-811
- bracket for installation on a table 83506 + ST/A10.11-811
