TO04A01KNX OL-U KNX Thermostat – REGULAR VERSION with temperature sensor
Type: eelectron TO04A01KNX OL-U KNX Thermostat – REGULAR VERSION
The KNX OL-U plastic thermostat contains plastic buttons and frames.
The TO04A01KNX is an OL-U® KNX series device for wall installation and is equipped with an LCD display with adjustable backlight.
The device can be configured via the ETS application program and can communicate with the KNX Data Secure protocol.
The device integrates a temperature sensor and two 2-stage thermostats to control two different areas, both with an integrated PI controller to control heating, cooling, valves, 6-way valves, 2 and 4 pipe fan coils.
The device is equipped with 4 mechanical buttons (8 channels) to control on/off commands, dimming, blinds and blinds or other programmable command and control functions. On the front, there is a capacitive strip with a swipe function for the implementation of programmable KNX functions. A freely configurable RGB LED bar is also available to display statuses or other quantities available on the KNX bus. In addition, 32 logic blocks are available to implement simple expressions with logical or threshold operators or complex expressions with algebraic and conditional operators.
The device also integrates "virtual holder logic"; the area of use is a hotel room: with a magnetic sensor installed on the door and connected to a digital input, accurate presence information is managed. A presence detection solution can deduce the presence of people in a room using one or more dedicated sensors. It also detects unexpected presence and can distinguish more behaviors.

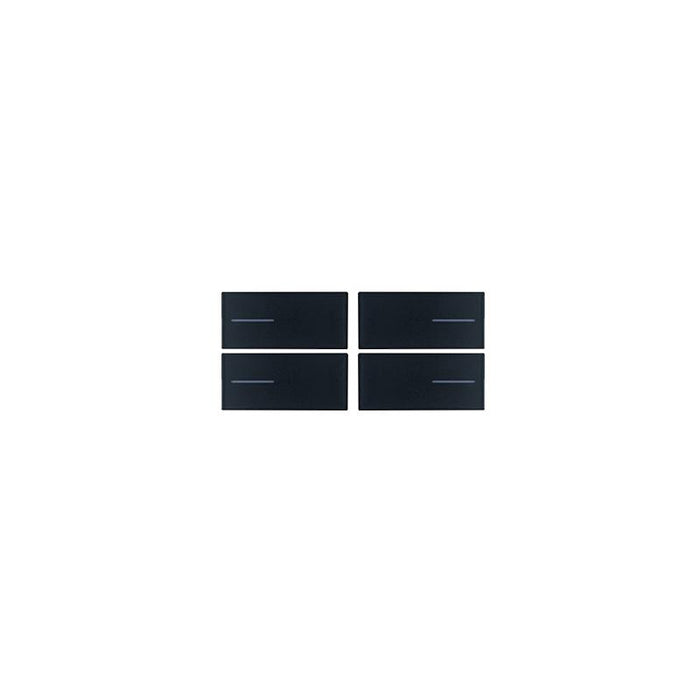

Black plastic version: TO04A01KNX (hardware) + BKT4PLL-3 (set of 4 buttons) + PO71A01PL-3 (frame)

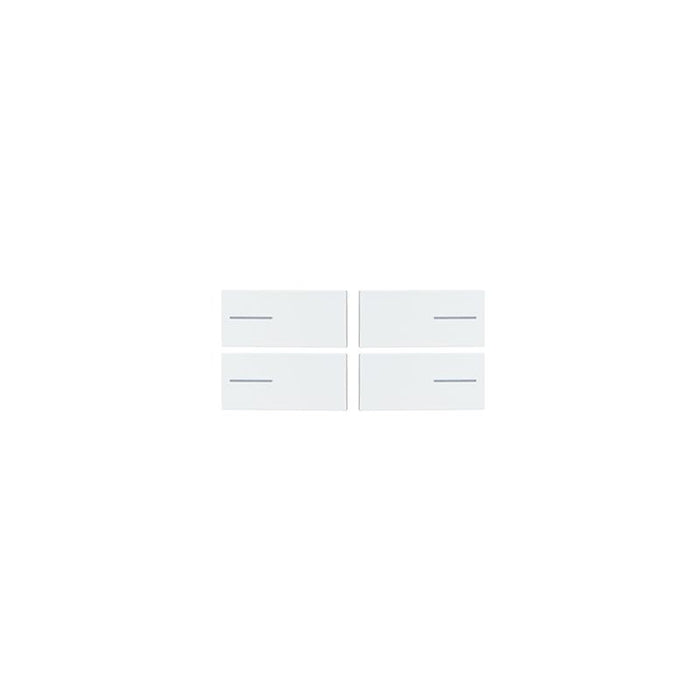

White plastic version: TO04A01KNX (hardware) + BKT4PLL-1 (set of 4 buttons) + PO71A01PL-1 (frame)
Link to manufacturer information
The price and the possibility to purchase a product from the eelectron brand will be displayed after logging in.
Estimated delivery time: 2-4 weeks (depends on quantity, please contact us for more details)
