BI08F01KNX Binary input module 8x (potential-free)

Type: eelectron BI08F01KNX Binary input module 8x (potential-free)

Bus System: KNX (TP)

Degree of protection: IP20

Mounting: DIN rail

The BI08F01KNX is equipped with 8 inputs for connecting dry contacts such as sensors, push buttons and can be configured to send on/off commands, dimmers, blinds, scene recall and sequences to the bus. Digital inputs can be configured for long or short distances.
A pulse counter function is also available to count switching inputs configured as digital over a short distance. There is an LED on the front panel to display the status of each input. The inputs can be configured as analog to connect NTC temperature probes (see electronic probes code TS01A01ACC / TS01B01ACC), with which it is possible to send the temperature measurement to the bus or to manage the complete thermostat module. Two inputs can be configured as a "smart sensor" to connect plug-in sensors: SM03E01ACC, which includes a temperature sensor and a CO2 sensor, and SM03E02ACC, which includes a temperature sensor and a VOC sensor for indoor air quality (IAQ) and CO2 equivalent (eCO2) measurements.
In addition, 10 logical blocks are available to implement simple expressions with logical or threshold operators or complex expressions with algebraic and conditional operators; It is possible to use predefined algorithms such as proportional temperature and humidity control or dew point calculation.

Link to manufacturer informations

The price and the possibility to purchase a product from the eelectron brand will be displayed after logging in.

Estimated delivery time: 2 - 4 weeks (depends on quantity, contact us for more precise information).

You may like it

  • BI04F01KNX Modul binárnych vstupov KNX 4x (bezpotenciálové)

    BI04F01KNX Binary input module 4x (potential-free)

    eelectron

    Type: eelectron BI04F01KNX Binary input module 4x (potential-free) Bus System: KNX (TP) Degree of protection: IP20 Mounting: DIN rail The BI04F01KN...

    View full details
    Original price €185,90 - Original price €185,90
    Original price
    €185,90
    €185,90 - €185,90
    Current price €185,90
  • AD84C01KNX Multifunkčný modul

    AD84C01KNX Multifunctional module

    eelectron

    Type: eelectron AD84C01KNX Multifunctional module - 4 digitalinputs, 4 inputs that can be configured as digital or analog for reading temperature p...

    View full details
    Original price €113,90 - Original price €113,90
    Original price
    €113,90
    €113,90 - €113,90
    Current price €113,90
  • IO08F01KNX Univerzálny modul KNX 8x vstupy/výstupy 16A

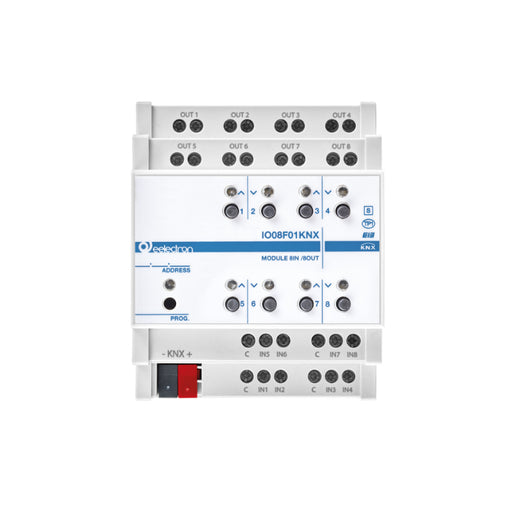

    IO08F01KNX Universal module 8x inputs/outputs 16A
