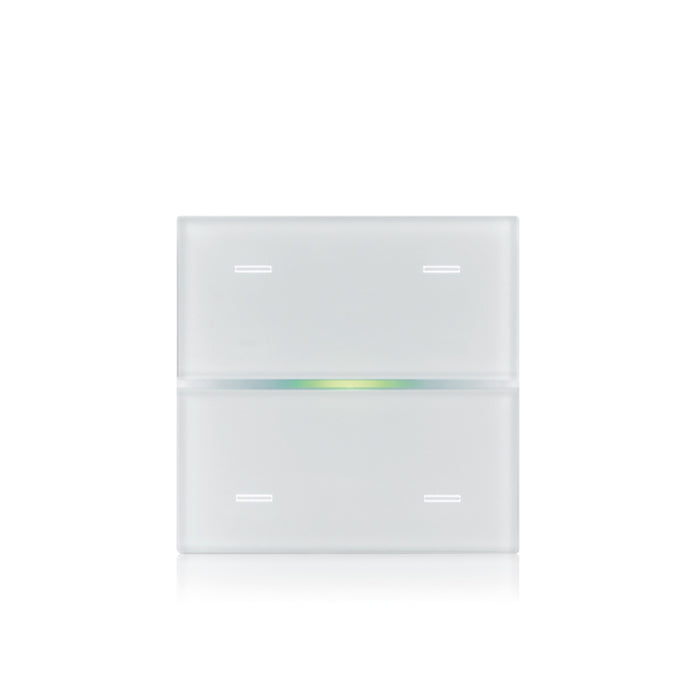

9025 Capacitive switch KNX - RGB RANGE - 4-channel

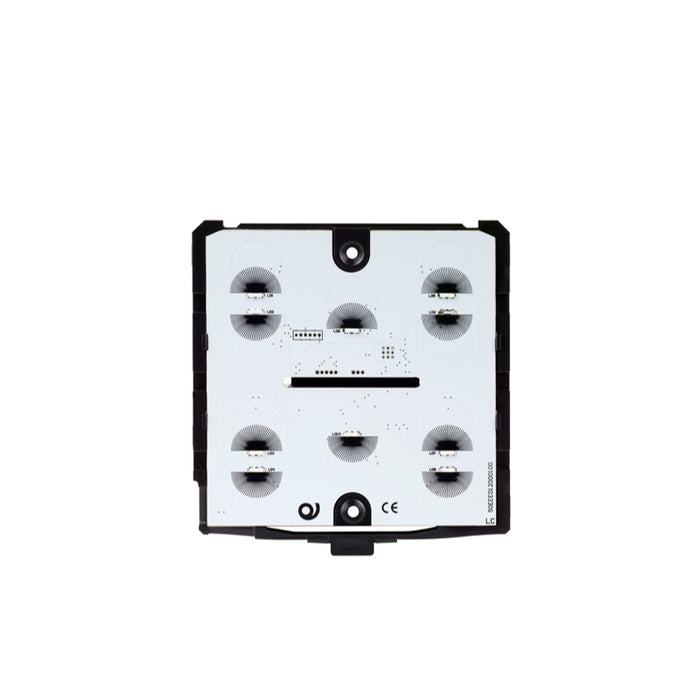

The package contains both the front and back parts (controller + glass)
Each button can be configured to manage on/off commands, dimming, blind control, scene recall and control, object sequences, etc.; The device includes a 2-stage room temperature controller with integrated PI for controlling heating and cooling devices, valves, 2- and 4-pipe fan coils; etc. The device has a built-in temperature sensor and a rear 2-pole connector configurable as a digital or analog input; It is possible to connect an additional NTC temperature probe (electronic codes TS01A01ACC or TS01B01ACC - not included) for direct temperature measurement.
The device is equipped with a KNX communication interface
The RGB LED bar on the front side enables the visualization of feedback or other values available via the KNX bus.
Installation in a two-module box that complies with the main standards (British, German, Italian, etc.).
Link to manufacturer informations
The price and the possibility to purchase a product from the eelectron brand will be displayed after logging in.
Estimated delivery time: 2 - 4 weeks (depends on quantity, contact us for more accurate information).
