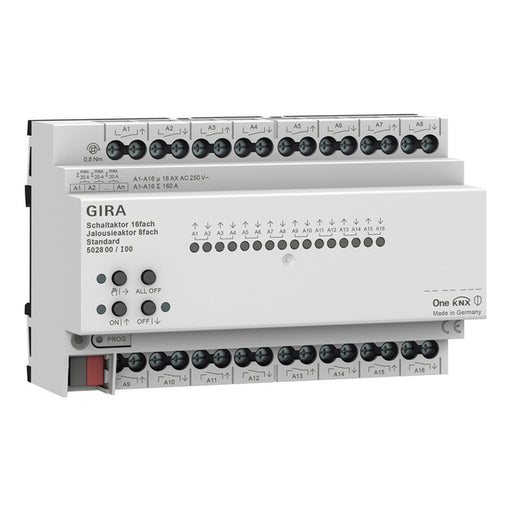

502800 KNX Secure Switch 16x/16A / blind module 8x/16A
- Original price €298,25
- €298,25
Type: GIRA 502800 KNX Secure Switch 16x/16A / blind module 8x/16A
EAN: 4010337061076
Bus System: KNX (TP)
Mounting: DIN rail
Depending on the parameterization, the drive can be used as a switching actuator or blind drive. Mixed configurations of switching and shutter drives are also possible. For the shutter actuator function, two adjacent relay outputs are combined into one shutter output.
In blind mode, adjacent outputs (A1/A2, A3/A4...) are combined into one blind output. Mixed operation on one drive is possible (e.g. shutter A1 & A2, shutter A3 & A4, switching A5, switching A6 ...).
Active transmission of feedback or status messages may be globally delayed after bus power is restored or after an ETS programming operation.
Manual output control independent of KNX with intelligent LED status displays for energy saving.
Advanced manual control: Switch between shutter mode and switching mode before starting ETS.
Heartbeat function for device tracking, cyclic transmission 1 bit.
Bistable relay.
Powered by KNX bus, no additional power supply required.
Simplified terminal connection (no overlap of terminals).
