SC344m - flexible sound system for 4 zones
Type: Trivum SC344m - flexible sound system for 4 zones
EAN: 4260393850972
The SC344m is a complete multiroom system for 4 rooms: amplifier, source, control: all professional in a 19" housing, in which, in addition to the integrated power supply, a large number of connection options are available.
Free app for iOS and Android or can be operated via browser.
Flexible thanks to the trivum t3OS operating system.
4 x amplifier, 2 x 30 watts each.
4 x streaming clients: Each zone has its own streaming client.
4 x DAB+/FM tuner: Each zone has its own DAB+/FM tuner.

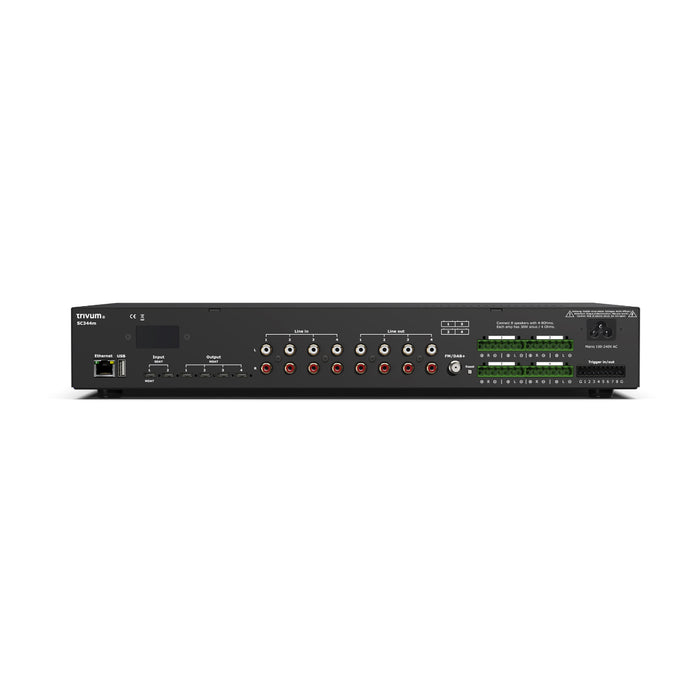

4 x analog line inputs.
4 x analog line outputs.
8 x I/O for trigger inputs or switching outputs.
6x USB-C connector for direct access to resources from other Trivum devices. Usable with V10 software (free upgrade).
A small OLED display on the front shows the IP address and other information.
Stream music from TuneIn, AirPlay, Spotify, Deezer, Tidal, Qobuz, Sound-Machine, NAS and web URLs.
Perfectly integrated in KNX.
Drivers for RTI, URC and Control4 are available for free.

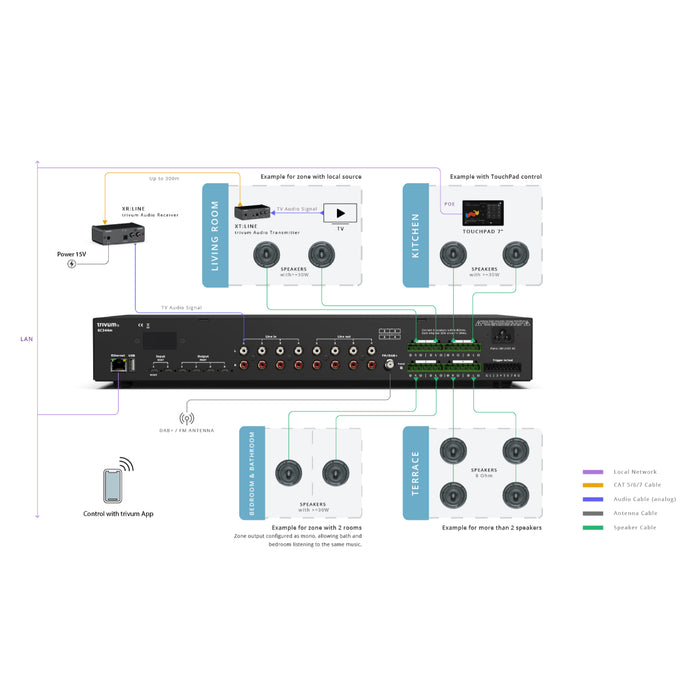

SC344m can be used separately for 4 zones. Can be combined with other trivum SoundSystems for up to 64 zones.
The possibility of mounting in a stand from both sides: only the display at the front or all connections at the front.
Built-in power supply.
Mounting bracket included.
KNX integration
Like all trivum Multiroom SoundSystems, the SC344m is fully integrated in KNX. Simple KNX buttons can thus control the music in the room. If KNX visualization is available or planned, it can take over the music control. It is very simple, easy to use and brings real added value in visualizations like GIRA QuadClient, Homeserver or GIRA G1/X1.
Trivum SoundSystem on PEAKnx touch panels
With the trivum-Bridge for KNX home control YOUVI, it is possible to display all trivum groups in a widget in the visualization. The control of several rooms is thus displayed in a space-saving manner together with the Smart Home control in a central place in the house.
Scope of delivery:
• 1x trivum SC344m
• 1x adapter for radio antenna (F connector)
• 1x power cable
• 1x quick installation guide

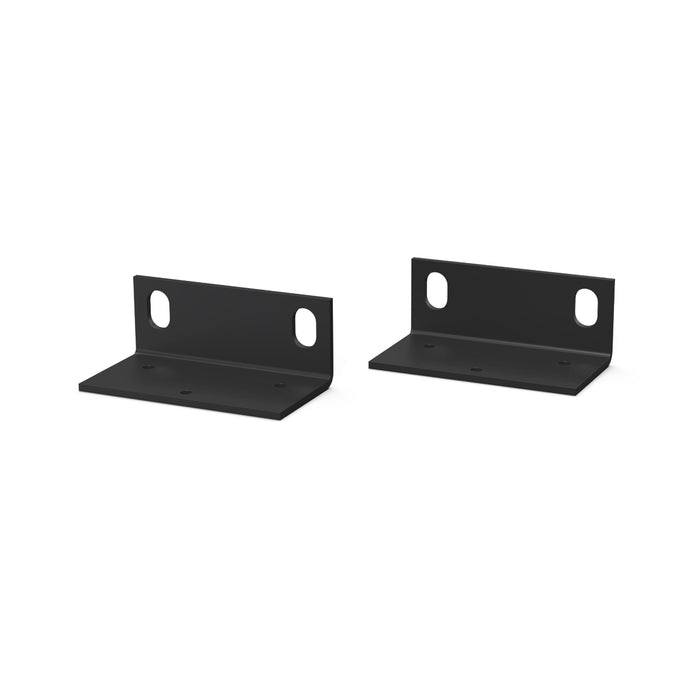

• 2x rack holder for mounting
Accessories (not included in the package):
- Analog audio transmitter kit
- Speakers - SCW165 - 2 pairs
The maximum number of speakers for output depends on the connection:
More information can be found at:
