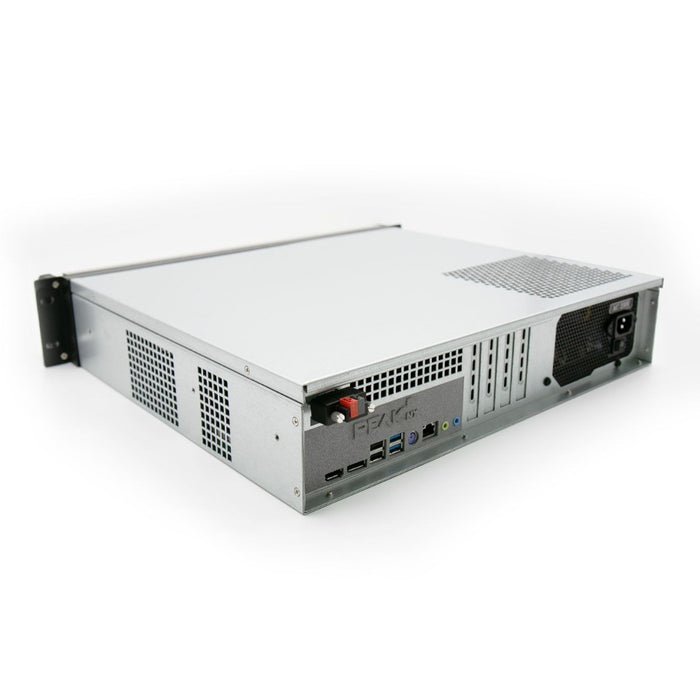

PNX22-10001 Performance Server including visualization

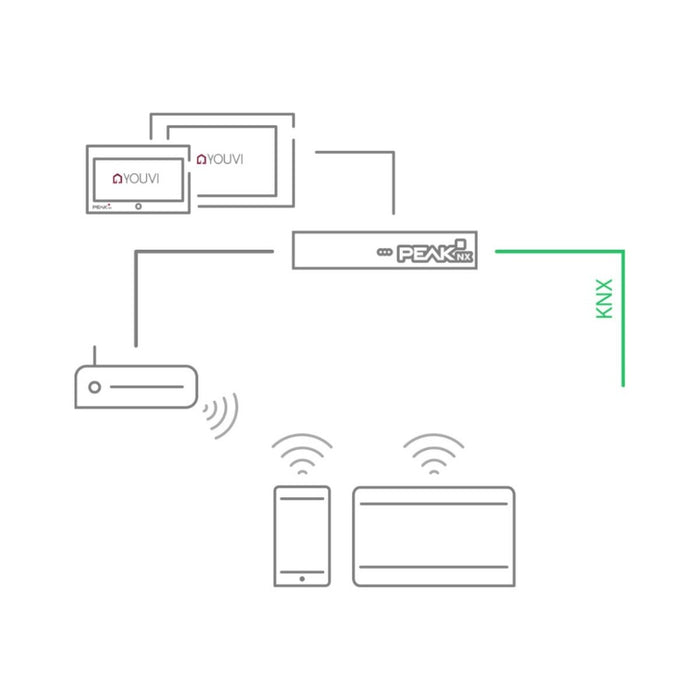

Performance Server brings YOUVI visualization to any end device. Regardless of whether Windows PC, touch panel, iOS or Android smartphone: With the included software package, reliable control of the KNX Smart Home is guaranteed. In addition, the building can also be controlled using the Connect Module via Alexa voice control or outside the home network via the Smartphone App. The KNX server is the ideal basis for this. It is extremely low-maintenance thanks to the Windows LTSC system and offers optimal protection against technical failures.

- Quad core processor
- Removable hard disk: SSD 120 GB
- RAM: 4 GB
- Operating system: Windows 10 IoT Enterprise LTSC
- Including the YOUVI Basic software package consisting of visualization software, IP router and bus monitor
- Dimensions (W x H x D): 430 mm x 90 mm x 400 mm
- Mains voltage: 110 to 230 V
- Max. power consumption: 40 W (depending on hard disk space)
- Switching power max.: 80W
- Consumption in standby mode: 2W
  -Weight: 7.6 kg

Ports:

- 2x USB 2.0
- 2x USB 3.2 Gen1
- DP V1.2
- Ethernet GLAN
- HDMI V1.4
- KNX
- Line In/Line Out
- PS/2

Software (optional):

YOUVI Connect Module, YOUVI Camera Module, YOUVI Logic Module, YOUVI Door Station Module, YOUVI Netatmo Bridge, YOUVI Sonos Bridge, YOUVI trivum Bridge

Link to manufacturer information

Estimated delivery time: 2 - 3 weeks
